Reading a trouble code without following the right steps in a factory manual is one of the fastest ways to misdiagnose a vehicle and waste time and money. Most drivers plug in a scanner, see a code, and immediately replace the part it points to. That alone causes hundreds of unnecessary repairs every year.
Use your online factory service manual for precise diagnostics. While scanners identify system issues, the manual provides exact procedures to confirm and repair them. Effective diagnosis requires a systematic approach: retrieve the code, identify the system, and follow the manual’s flowchart to the root cause.
This guide walks through every step of reading and using trouble codes inside factory manuals, from locating the DTC section to performing pinpoint tests the way a trained technician would.
Reading Trouble Code Steps in Factory Manuals: The Process Pros Actually Follow
Most repair guides stop at telling you to plug in a scanner and look up a code online. That approach skips the most important part entirely. Factory service manuals contain manufacturer-specific diagnostic trouble code charts, pinpoint test procedures, and circuit diagrams that generic websites simply do not have.
This section covers the complete process, step by step, the way a senior technician at a dealership would actually work through it. Every element here is drawn from how professional factory manuals structure their diagnostic sections.
Step 1: Locate the DTC Section in Your Factory Manual
Before you scan anything, you need to know where your manual keeps its trouble code information. Skipping this step is the most common mistake DIY mechanics make when starting a diagnosis.
Factory manuals are organized by system. The diagnostic trouble code section is usually not at the front of the book. Look for these locations depending on your manual format:
- Powertrain Control/Emissions Diagnosis section for engine and transmission codes
- Electrical/Wiring section for network and body codes
- An index under “DTC,” “Fault Codes,” or “Self-Diagnostics.”
- A separate “Diagnostic Charts” booklet in older multi-volume sets
Most factory manuals label their DTC charts clearly. Once you find the correct section, identify the subsystem your code belongs to before doing anything else. This saves significant time and prevents you from following the wrong pinpoint test.
For DIY mechanics who rely heavily on these manuals, understanding why they need factory service manuals from the start prevents costly misdiagnosis.
Step 2: Connect Your Scanner and Pull Active Codes
Once you know where your factory manual stores its DTC charts, the next step is pulling the actual codes from your vehicle. This must be done correctly, or you risk missing pending codes that haven’t yet triggered the check engine light.
Follow these steps precisely:

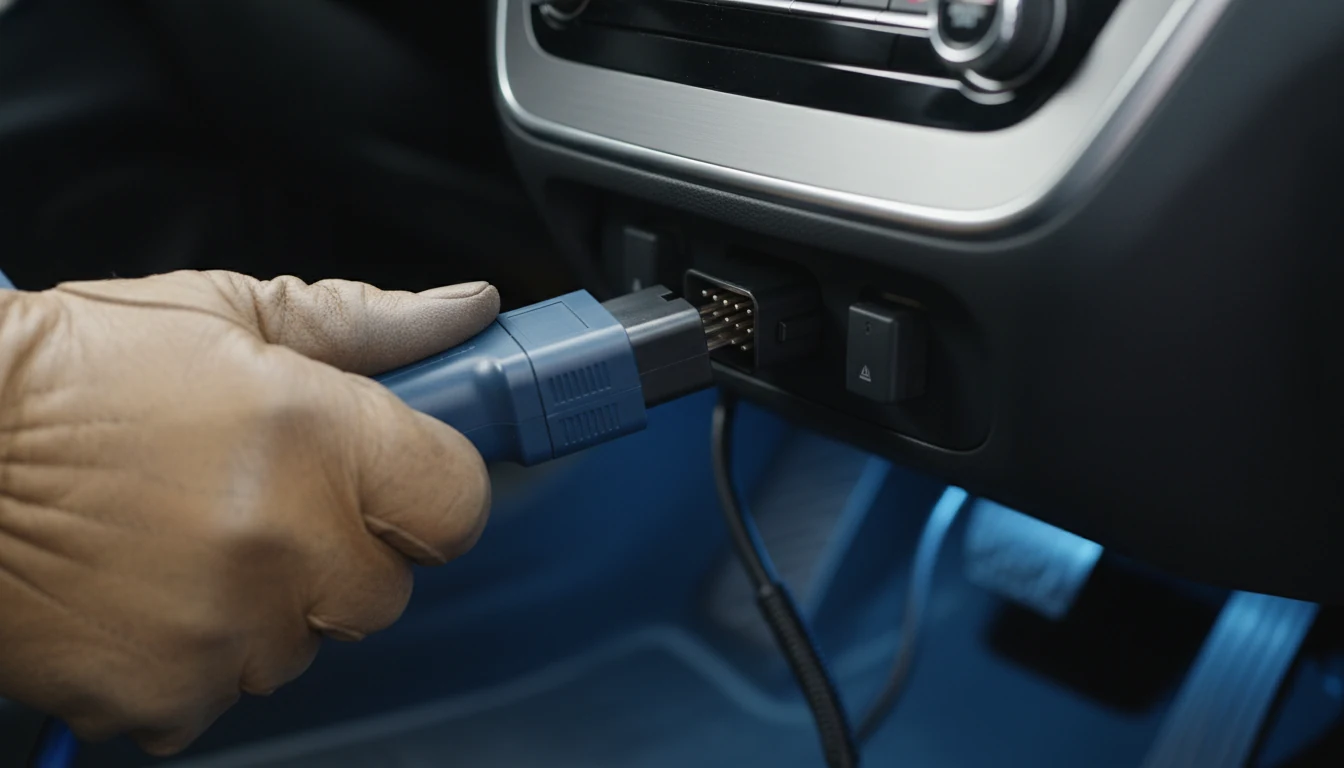

- Locate the 16-pin OBD-II diagnostic link connector (DLC) under the driver’s side dashboard, near the steering column
- Plug in your scan tool firmly until it locks into the connector
- Turn the ignition to the ON position without starting the engine
- Select “Read Codes” on your scanner menu
- Choose between Active Codes and Pending Codes when prompted
Active codes are faults currently causing the check engine light to stay on. Pending codes have occurred at least once but haven’t triggered the MIL yet. Both matter for a complete diagnosis.
Write down every code displayed, in the exact order it appears on your scanner. When multiple trouble codes are present, always address the first code listed. In many cases, the lower codes are simply symptoms created by the primary fault.
| Code Type | What It Means | Action Required |
|---|---|---|
| Active Code | Fault is currently present | Diagnose immediately |
| Pending Code | A fault occurred, but the MIL was not triggered | Monitor and test |
| Permanent Code | Fault stored, cleared, but not verified | Must pass the drive cycle test |
| Historic Code | Fault occurred in the past, no longer present | Document, investigate if recurs |
Step 3: Decode the Code Structure Before Opening the Manual
Every diagnostic trouble code follows a five-character structure. Understanding the structure before you open the factory manual helps you navigate directly to the right section without reading pages you don’t need.
Here is how each character of a trouble code breaks down:
- First character (letter): Identifies the system. P = Powertrain, B = Body, C = Chassis, U = Network
- Second character (number): 0 = generic/standardized, 1 = manufacturer-specific
- Third character (number): Identifies the subsystem (fuel, ignition, emission, etc.)
- Fourth and fifth characters (numbers 00-99): Specify the exact fault within that subsystem

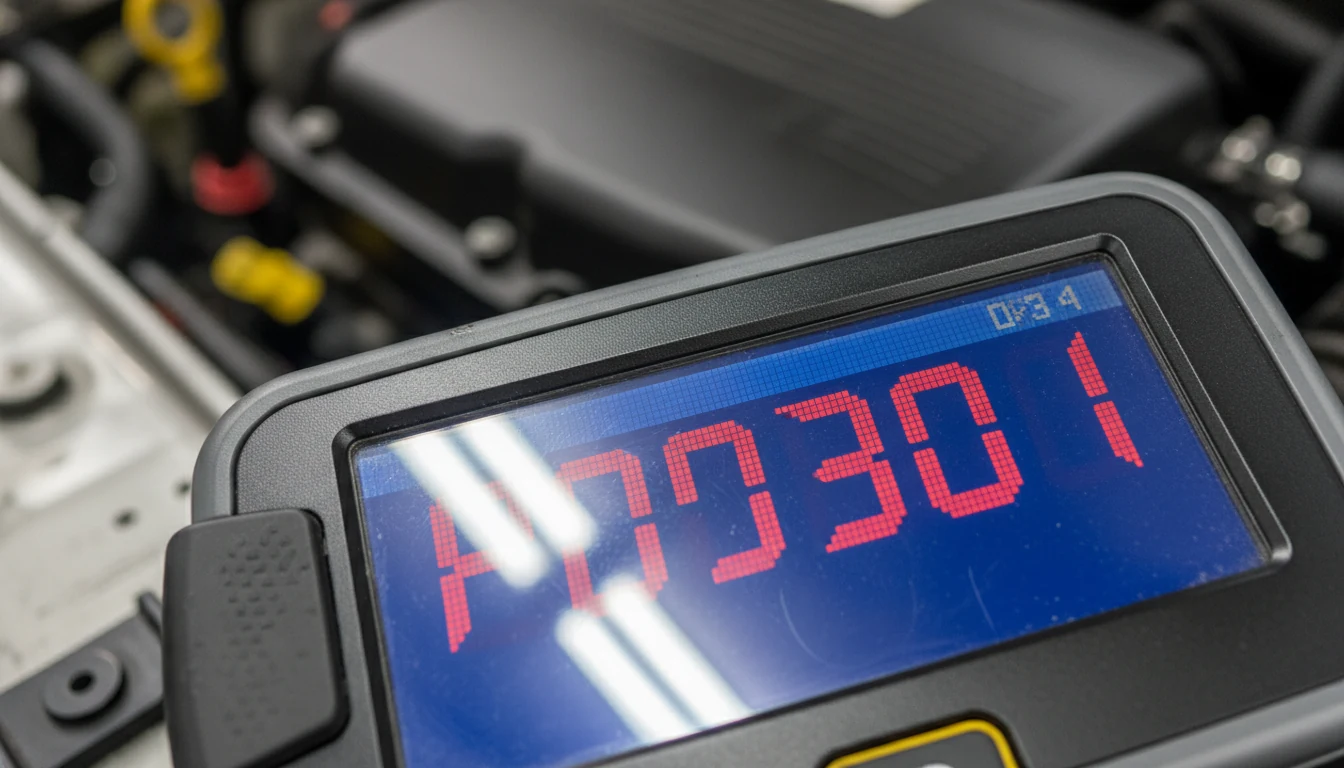

For example, P0301 means: Powertrain (P), generic (0), ignition/misfire system (3), cylinder 1 misfire detected (01).
When the second character is a 1, that code is manufacturer-specific. This is where your factory manual becomes absolutely essential. No generic website reliably covers manufacturer-specific codes.
Only the factory service manual for your exact vehicle has the correct description, possible causes, and pinpoint tests.
Step 4: Cross-Reference the Code in the Factory DTC Chart
Now you open your factory manual to the DTC chart. This is where the professional process separates itself from a basic internet search.
The factory DTC chart for each code typically includes:
- Code description: Exactly what the system detected
- Possible causes: A ranked list of likely causes from most common to least
- Diagnostic aids: Notes on conditions that could create false codes
- Pinpoint test reference: A letter or number directing you to a specific test procedure
Do not skip the diagnostic aids section. This is where the factory manual warns you about things like a loose fuel cap triggering an EVAP code, or moisture on a sensor creating an intermittent fault that comes and goes. Many unnecessary repairs happen because the technician ignored this section entirely.
If you are working with Ford vehicles specifically, knowing how to find the right Ford owner’s manual for any model year ensures you are referencing the exact correct DTC charts for your year and engine combination.
Step 5: Follow the Pinpoint Test Procedure
This is where most DIY mechanics stop following the factory manual and start guessing. The pinpoint test is a structured flowchart in the factory service manual that walks you through every component and circuit involved in a specific code.
Each pinpoint test gives you:
- Exact connector locations with circuit diagrams
- Voltage and resistance values to measure at each test point
- A yes/no decision tree that leads to a confirmed root cause
- Instructions on what to check if the previous step passed
For help reading the wiring diagrams and connector views during pinpoint tests, referencing how to read connector views in factory manuals prevents misidentifying the correct terminals and wires.
Always complete every step of the pinpoint test in order. Jumping ahead because a component looks bad is how technicians end up replacing parts that weren’t the root cause.
| Pinpoint Test Stage | What You Are Testing | Key Manual Reference |
|---|---|---|
| Initial circuit check | Power and ground at the sensor | Wiring diagram section |
| Signal range test | Voltage or resistance within spec | DTC possible causes list |
| Component isolation | Component function without a circuit | Component test specs |
| Verification | Code clears after repair | Drive cycle requirements |
Step 6: Clear Codes Only After Confirming the Repair
Clearing codes before confirming the repair is one of the most common mistakes outlined in detail in the common mistakes section of factory repair manuals. A cleared code does not mean a fixed vehicle.
After completing the pinpoint test repair:
- Use your scan tool to clear the diagnostic trouble code from the ECM memory
- Perform the factory manual’s specified drive cycle for that code
- Rescan to confirm no active or pending codes return
- Check freeze frame data to verify sensor values are now within specification
Permanent codes are the exception. They cannot be cleared with a scan tool. They disappear only after the ECM runs its self-tests and passes them across multiple drive cycles.
Before starting any major repair, review a factory manual PDF checklist to ensure you have all tools, specs, and safety steps in order before touching a component.
Conclusion
Reading the trouble code steps in factory manuals is not a shortcut process. It is a structured diagnostic method that starts well before you touch a wrench and ends only after a confirmed verification drive. The scanner gives you a starting point. The factory manual gives you the complete path to a real repair.
Skipping the pinpoint tests, ignoring diagnostic aids, or clearing codes without verification wastes time and parts. Follow the six steps above with your factory service manual open beside you, and your diagnostic accuracy will improve immediately.
Frequently Asked Questions
Can a factory manual help me understand manufacturer-specific trouble codes that generic scanners don’t explain?
Yes, and this is actually one of the most important reasons to use a factory service manual instead of relying on generic databases. When the second character of a DTC is a “1,” the code is manufacturer-specific, meaning only the OEM documentation for your exact vehicle contains the accurate description, possible causes, and pinpoint test procedure.
Generic code databases often provide incomplete or incorrect descriptions for these codes. The factory manual for your specific year, make, and engine provides the exact diagnostic steps and circuit references needed to confirm the actual fault rather than guessing based on a code label.
What is freeze frame data, and how does it connect to reading trouble codes in a factory manual?
Freeze frame data is a snapshot of your vehicle’s sensor values captured at the exact moment a trouble code was set. It records parameters like engine RPM, coolant temperature, fuel trim, and vehicle speed.
When you cross-reference this data with your factory manual’s reference values section, you can often immediately determine whether a sensor was out of range at the time the fault occurred.
This helps distinguish a real component failure from a temporary fault caused by conditions such as cold startup or a loose connection, and it guides you directly to the most relevant pinpoint test in the manual.
How do pending trouble codes differ from active codes when following factory manual steps?
A pending code means the OBD-II system detected a fault condition at least once, but not enough times to trigger the malfunction indicator light.
An active code means the fault has met the threshold to turn on the check engine light and is currently present. Factory manual diagnostic steps apply to both, but pending codes require additional attention because they can represent intermittent faults that are harder to reproduce.
The manual’s diagnostic aids section for each code often includes specific conditions under which the fault is most likely to reappear, which helps you set up the correct test conditions.
Do factory service manuals cover OBD-I trouble codes differently from OBD-II codes?
Yes, significantly. OBD-I systems predate the 1996 standardization requirement, so every manufacturer used its own code format and retrieval method. Reading trouble codes on older Ford vehicles, for example, required jumping specific terminals in the DLC and counting check engine light flashes.
Each factory manual from the OBD-I era contains a unique retrieval procedure, a separate code list, and different test parameters. There is no universal approach.
If you are working on a pre-1996 vehicle, the correct year and model-specific factory service manual is not optional; it is the only reliable source for accurate code reading and diagnosis.
How many drive cycles does it typically take to confirm a repair after clearing a trouble code?
The number of drive cycles required varies by code type and manufacturer, and the specific requirement is documented in your factory manual under the monitors or readiness section.
For most emission-related codes, the ECM must complete 1 to 3 full drive cycles that include the specific operating conditions required to run the monitor.
Codes related to oxygen sensors, EVAP systems, and catalytic converters often require the most specific conditions. If a permanent code is present, a scan tool cannot clear it.
Only a completed and passed ECM self-test across the required number of verified drive cycles will remove a permanent DTC from memory.
