Many mechanics waste significant time by ignoring the specific structure of factory diagnostic flowcharts. Misinterpreting a decision branch can lead to incorrect diagnoses and costly, unnecessary part replacements. Often, failing to fix a problem stems from not strictly following the flowchart’s precise instructions.
Success requires strictly following these flowcharts as rigid logic systems without skipping steps. These “if-then” guides standardize repairs and reduce downtime by mapping symptoms directly to causes.
This article covers how factory diagnostic flowcharts work, how to read each section without confusion, where most people go wrong, and how to pair these charts with your factory service manual to get clean, confirmed results every single time.
Factory Diagnostic Flowcharts Made Simple: The Logic System Most Repair Guides Skip
Factory diagnostic flowcharts are not just visual aids. They are sequential logic systems built by OEM engineers who know exactly how each circuit, module, and sensor is supposed to behave. Every branch is a test. Every outcome is a direction. Follow the map exactly, and you land at a confirmed fault, not a likely fault.
This section covers each layer of the flowchart structure, so you understand what you’re reading before you touch the vehicle.
Step 1: Read the System Overview Before Touching the Chart
Most technicians jump straight to the chart, skipping the system overview entirely. That’s a critical error. The system overview explains how the OEM designed the circuit to function. It tells you what the module expects, what inputs trigger what outputs, and what normal operation looks like. Without that foundation, the flowchart’s decision branches become guesswork in disguise.
Before opening the actual diagnostic flowchart, read these sections in your factory service manual:
- Circuit description: Explains voltage paths, ground references, and signal logic
- Conditions for setting the DTC: Tells you exactly what the module saw before storing the code
- Conditions for clearing the DTC: Tells you what proof the system needs that the fault is resolved
- Diagnostic aids: OEM notes about known variants, common failure patterns, and pitfalls
Technicians who skip this step tend to reach a “replace the PCM” conclusion when the real fault is a dirty ground or a loose connector.

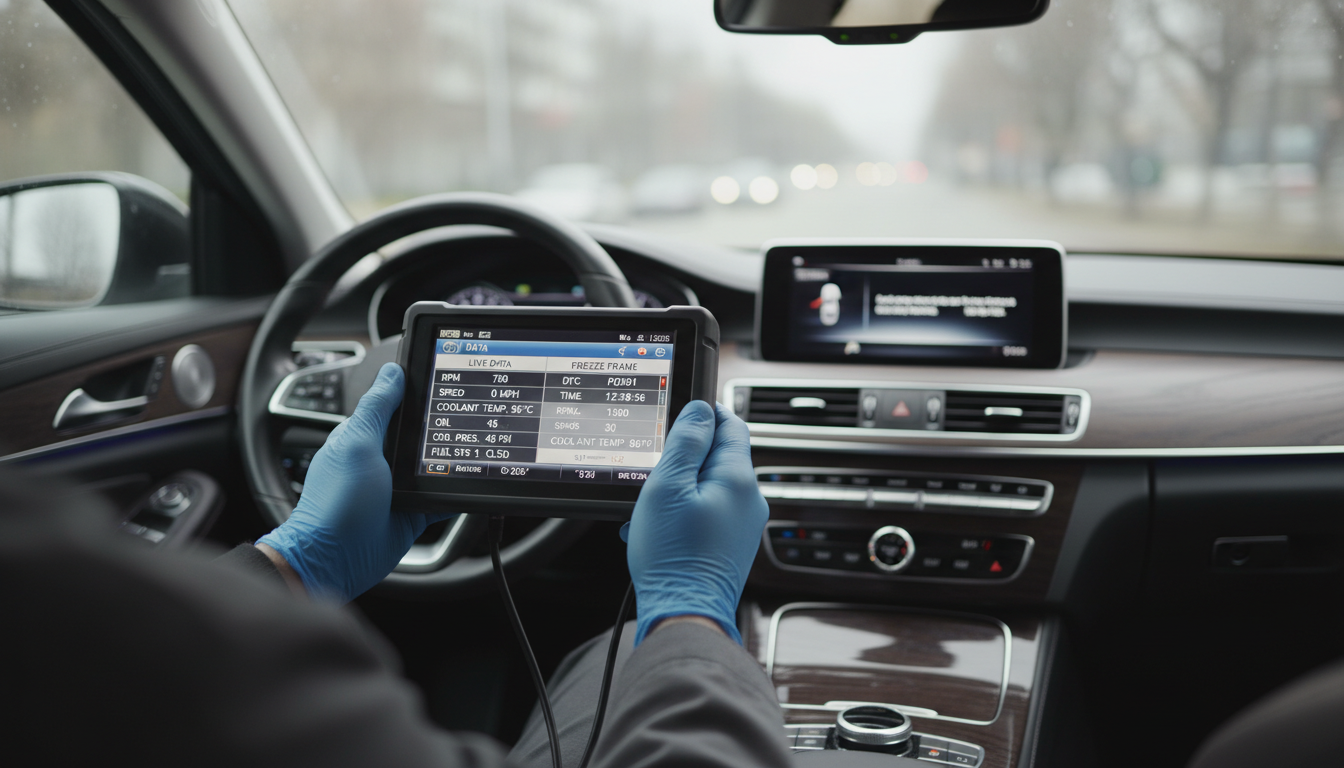

Step 2: Confirm the Symptom, Then Match It to the Correct Chart
This seems obvious, but it’s regularly skipped. A diagnostic flowchart is only valid when it’s matched to the correct and verified symptom. If the customer reports an intermittent stall and you pull a MAF code, that code alone doesn’t confirm the MAF caused the stall. You need to verify the symptom under conditions that reproduce it.
Here’s how to match correctly:
- Reproduce the symptom first under real operating conditions.
- Pull all stored and pending codes and note freeze frame data.
- Cross-reference the symptom against the flowchart index in the manual.
- Confirm setting conditions match what actually happened on the vehicle.
| Scenario | Wrong Approach | Correct Approach |
|---|---|---|
| P0171 stored | Jump to the MAF flowchart immediately | Verify lean symptom, check freeze frame, confirm setting conditions |
| No-start condition | Use any no-start chart | Match to crank/no-start vs. start/stall distinction |
| Intermittent misfire | Test random cylinders | Verify misfire conditions, match to correct DTC and chart |
| ABS warning light | Clear code and retest | Confirm which module flagged the fault and use that system’s chart |

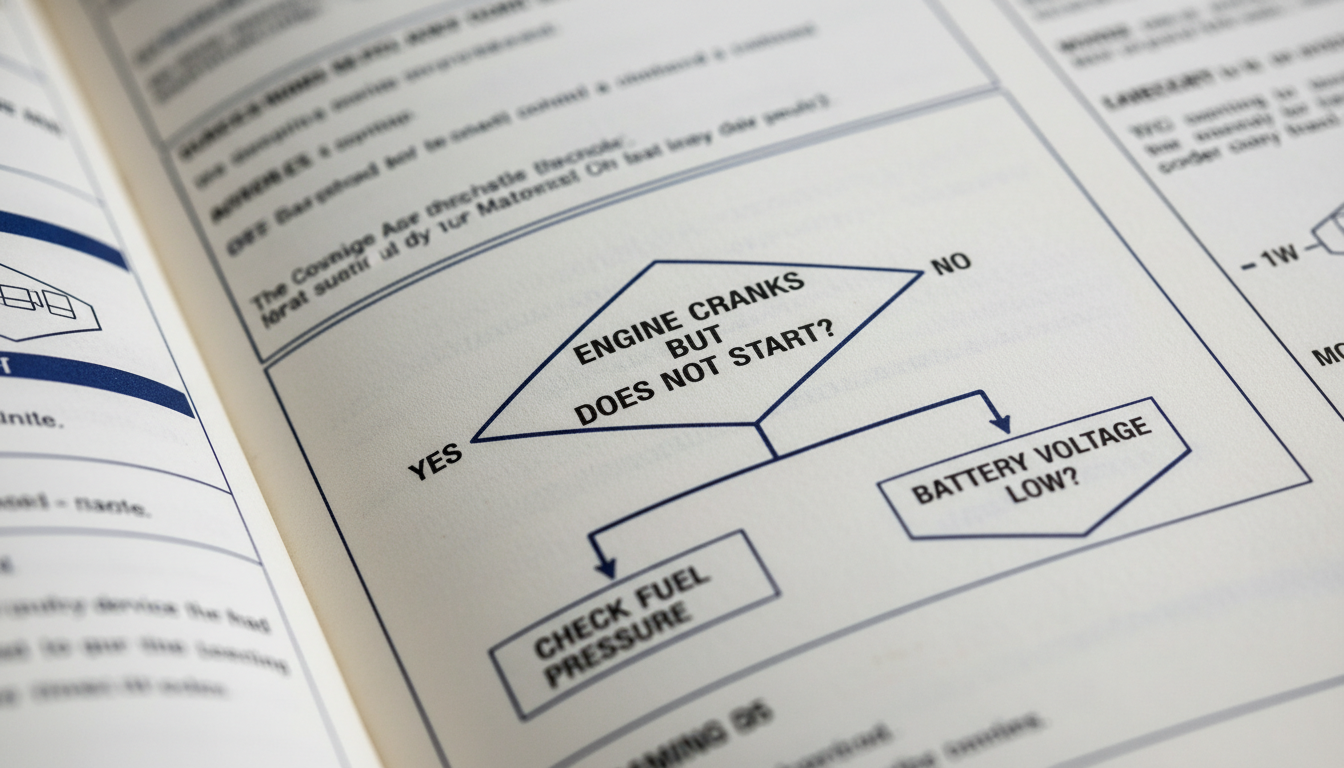

Step 3: Follow Every Branch Exactly, No Shortcuts
This is where most diagnostics fall apart. A diagnostic flowchart is a logic tree. Every node requires a result before moving forward. Skip a node, and the entire logic chain breaks.
The most common shortcut techs take is to rely on visual inspection instead of measurement. A wire that looks clean may have a broken core inside the insulation. A connector that looks seated may have a bent terminal. The flowchart requires a measurement because visual checks alone are not proof.
Key rules when following the chart:
- Never assume a result. Perform the test and record the actual value.
- Never jump ahead because you think you know what’s failing.
- Never exit the chart early unless the chart explicitly says to stop.
- If a branch says “repair the open in circuit X and retest,” retest before continuing.
- If the chart sends you to a sub-routine, complete it fully before returning.

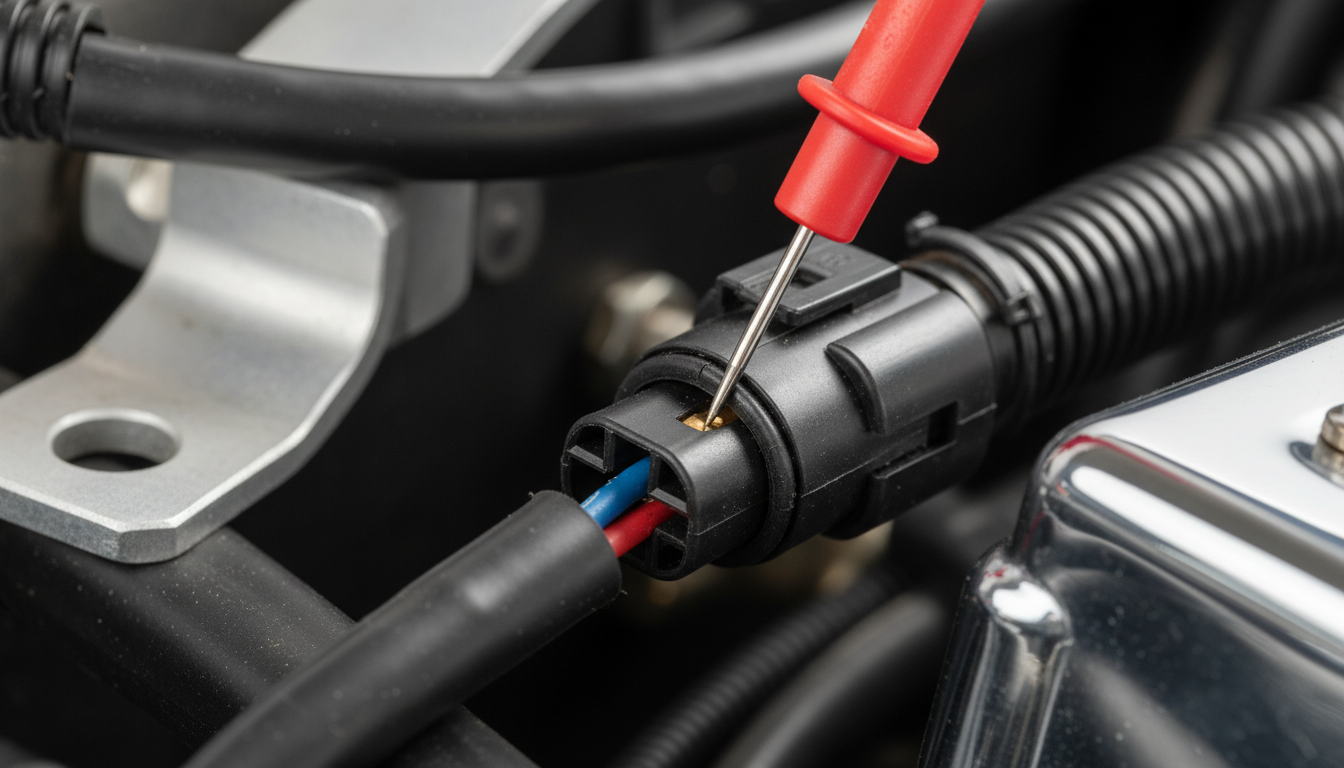

Step 4: Use Exact Test Points and OEM Specifications
At some point, every factory diagnostic flowchart requires circuit testing. This is the proof stage. It’s where faults are confirmed, and opinions are removed from the diagnosis.
The factory service manual specifies exact test points, expected voltage ranges, resistance limits, and waveform references. Do not substitute generic values. Use the ones in the manual for your specific vehicle.
Tools you need for this stage:
- Digital multimeter with back-probe capability
- Fused jumper wires for controlled power and ground tests
- Scan tool with live data for sensor voltage and duty cycle readings
- Oscilloscope for signal waveform verification on sensors like CKP and CMP
If readings fall outside OEM specifications, the fault is confirmed. The manual dictates the conclusion. Personal experience can help you work faster, but it cannot replace a measured result against a known specification.
Step 5: Verify the Repair Before Closing the Job
Completing a repair and clearing codes does not constitute a final diagnosis. The factory diagnostic flowchart process ends with verified confirmation that the fault condition no longer exists.
Most repeat failures happen here. The tech replaces the part, clears the code, and returns the vehicle. Three days later, the light returns. That’s not a parts failure. That’s a process failure.
Factory service manuals require readiness confirmation through specific steps:
- Drive cycle completion: The OEM defines a specific speed, load, and time sequence.
- Readiness monitor verification: Confirm all monitors have reset and run.
- Live data confirmation: Verify the repaired circuit performs within spec during operation.
- No pending codes: Check for pending codes, not just stored ones.
Flowchart Symbol Reference: What Each Shape Means
Understanding the visual language of factory diagnostic flowcharts speeds up reading and prevents misinterpretation.
| Symbol Shape | Meaning |
|---|---|
| Rectangle | An action or instruction to perform |
| Diamond | A yes/no decision point requiring a test result |
| Oval / Rounded Rectangle | Start or end of the flowchart |
| Arrow | Direction of logic flow |
| Parallelogram | Data input or output (scan tool reading, specification) |
| Bold border box | A critical warning or caution note |
When the Flowchart Points to the PCM: What to Do Next
Every technician dreads seeing “replace the PCM” at the end of a chart. Before condemning a module, perform these additional checks:
- Swap test with a known-good module from an identical vehicle if available.
- Check all power and ground circuits to the module at the connector, not at the fuse block.
- Verify software version and whether a calibration update exists for this DTC.
- Review technical service bulletins for your vehicle and DTC combination.
The flowchart shows the most statistically likely cause, not the only possible cause. It cannot account for every unusual condition.
Conclusion
Factory diagnostic flowcharts are the most reliable diagnostic tool an automotive technician has access to, but only when followed completely. Skipping the system overview, jumping branches, substituting visual checks for measurements, and skipping the post-repair drive cycle are the four habits that turn a competent technician into a parts replacer.
The process is straightforward: read the overview, match the chart to the verified symptom, follow every branch with measured results, test to OEM specifications, and confirm the repair with a proper drive cycle. Do that consistently, and an accurate first-time diagnosis becomes the norm rather than the exception.
